Wind Mill

We install Hybrid Wind Mills from 500 watts up to 8500 watts, having the following hybrid combination…

These Wind Mills can be installed either on Ground or also on Roof Tops of bungalows or High Rise buildings. When installed on High Rise buildings these are mounted on Anti-Vibration pads foundation so that the vibrations of the Wind Mill are not transferred to the structure of the building, thereby keeping the building safe & sound.

These Wind Mills have a life span of nearly 25years. The best part is that the Govt of India gives a 40% subsidy on the installed Wind Mill above 3kw.

These Wind mills come in various range right from 350watts up to 5100watts & are to be installed in conjunction with Solar Photo voltaic panels.They are to be essentially put up on a high tri-pole lattice tower which can be installed on ground or also on high rise buildings which is supported by 6 guy wires or they can also be installed on a Mid-Hinge polygon mast. The hybrid combination provides a great amount of Electrical energy which can be used for various lighting loads.The cost varies upon the size of the installation.

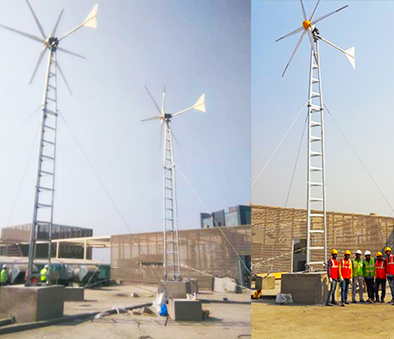

These are basically micro wind mills ranging from 350 watts right up to 5100watts. The actual Wind Mill Energy Generator machine is coupled with blades again ranging from 1 meter up to 6 meters in length. The blades could be two or three in quantity per wind mill. Whole of this system is installed on a 40 or 60 or 80 feet high tri-pole lattice tower. This pole could also be a single high mast which has a hinge at the middle so that it can bend in the middle to bring the top down to the ground level.

These energy generators can be installed on he ground or even on the terrace tops of high rise buildings. The higher they are installed the more energy would be generated. The ratio of the hybrid combination could vary from geographical location to location & the most probable solution would be a 60% Wind component & 40% Solar component. The Charge Controller or the System Centre is the heart of the whole Energy Generator & it controls whole of the system operation, like it doesn’t allow the wind mill to rotate above a particular high speed. It automatically breaks the mill & doesn’t allow it to rotate till the wind pressures are down to a permissible limit. Also it takes care of the battery in a way it doesn’t allow it to be over charged or deep discharged, thus increasing the life of the battery up to 6 to 7 years & reducing operators overheads. The hybrid combination provides a great amount of Electrical energy which can be used for various lighting loads. The cost varies upon the size of the installation.
